The K-12 Open Interoperable Platform

SAFARI Montage® Servers



T-640
RM-540
RM-86
RM-128X
WAN-1212
WAN-1216X
T-640
RM-540
RM-86
RM-128X
WAN-1212
WAN-1216X
  • T640i Server T640i Server

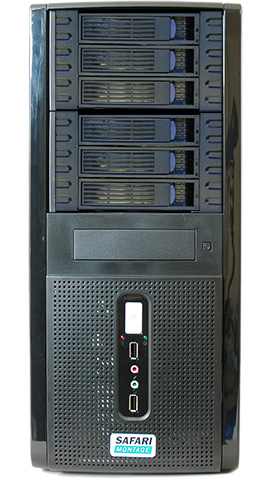

    T-640

    A space-efficient solution that is perfect for a single school's digital media delivery needs and remote server applications

    The SAFARI Montage® T-640 server offers maximum system performance with an ultrafast Quad Core Intel® Xeon® E3-1271 V3 processor and ample expandability with six hard drive bays.

    Manufactured by SAFARI Montage, this server has been custom-configured and optimized for high-quality video playback on the SAFARI Montage® platform. With six hard drive bays, the T-640 provides the storage capacity for thousands of hours of created content and expansion capacity to meet future growth needs.

    All servers come pre-loaded with the SAFARI Montage® OS and the appropriate number of Core Content hard drives to match your order. With each installation, SAFARI Montage carefully evaluates district needs and bandwidth to develop customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming Library, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Key Features:

    • Quad Core Intel® Xeon® E3-1271 V3
    • Maximum capacity and expandability with six drive bays
    • 250 GB Solid State Drive(s)
    • Space-efficient tower

    License & Warranty

    One-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).


    System Requirements for Desktop Clients

    SAFARI Montage T-640 Purchase Information
    95% E-Rate Eligible | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.

    Technical Specifications

    Manufacturer &
    Operating System
    safari montage logo
    CPU
    Quad Core Intel® Xeon® E3-1271 V3
    CPU Cores
    4 (total)
    CPU Threads
    8 (total)
    CPU Speed
    3.6-4.0 GHz
    Cache
    8 MB
    Memory
    8 GB DDR3-1600 ECC
    Drive Bays
    6
    Drives Included
    250 GB SSD OS Drive
    SATA 7.2K Content Drive(s)
    Network
    100/1000 Mbps port
    Chassis
    Tower
    Power
    500W PSU (single)
    115 V AC/10 A
    230 V AC/6 A
    Dimensions
    Height: 43.18 cm (17.00")
    Width: 20.32 cm (8.00")
    Depth: 48.3 cm (28.00")
    Weight
    16.32 kg (36 lbs)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

  • RM540i server

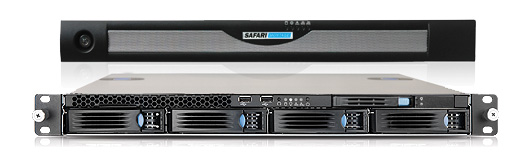

    RM-540

    A space efficient solution that is perfect for a single school's digital media delivery needs and remote server applications


    The SAFARI Montage® RM-540 server offers maximum system performance with an ultra-fast Quad Core Intel® Xeon® E3-1271 V3 processor and future expandability with five hard drive bays.

    Manufactured by SAFARI Montage, this server has been custom-configured and optimized for high-quality video playback on the SAFARI Montage platform. With five hard drive bays, the RM-540 provides the storage capacity for thousands of hours of created content and expansion capacity to meet future growth needs.

    All servers come pre-loaded with the SAFARI Montage® OS and the appropriate number of Core Content hard drives to match your order. With each installation, SAFARI Montage carefully evaluates district needs and bandwidth to develop a customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming LIbrary, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Key Features:

    • Quad Core Intel® Xeon® E3-1271 V3
    • Future expandability with five drive bays
    • 250 GB Solid State Drive
    • Space-efficient 1U rack-mount

    License & Warranty

    One-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).


    System Requirements for Desktop Clients

    SAFARI Montage RM-540 Purchase Information
    95% E-Rate Eligible | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.

    Technical Specifications

    Manufacturer & Operating System
    safari montage logo
    CPU
    Quad Core Intel® Xeon® E3-1271 V3
    CPU Cores
    4 (total)
    CPU Threads
    8 (total)
    CPU Speed
    3.6-4.0 GHz
    Cache
    8 MB
    Memory
    8 GB DDR3-1600 ECC
    Drive Bays
    5
    Drives Included
    250 GB SSD OS Drive
    SATA 7.2K Content Drive(s)
    Network
    100/1000 Mbps
    Chassis
    1U Rack-Mount
    Power
    400W PSU (single)
    115 V AC/6 A
    230 V AC/3 A
    Dimensions
    Height: 4.45 cm (1.75")
    Width: 48.3 cm (19.00")
    Depth: 66.0 cm (26.00")
    Weight
    17.23 kg (38 lbs)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

  • RM86 server

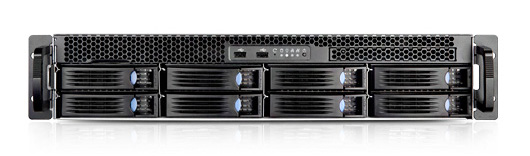

    RM-86

    A large-volume, space efficient solution that is perfect for a single school's Learning Object Repository delivery needs


    The SAFARI Montage® RM-86 is a 2U server, offering maximum system performance with an ultra-fast Hex-Core Intel® Xeon® processor, superior expandability with eight hot-swappable hard drive bays and redundant network connectivity.

    Completely scalable and manufactured by SAFARI Montage, this server has been custom-configured and optimized for high-quality video playback on the SAFARI Montage® platform. With eight hard drive bays, the RM-86 provides storage capacity to store thousands of hours of created content and more than adequate expansion capacity to meet future growth needs.

    All servers come pre-loaded with the SAFARI Montage® OS and the appropriate number of Core Content hard drives to match your order. With each installation, SAFARI Montage carefully evaluates district needs and bandwidth to develop a customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming LIbrary, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Key Features:

    • Hex-Core Intel Xeon CPU for 50% More Processing Power1
    • Superior capacity and future expandability with eight hot-swappable drive bays
    • 7.2K SATA Drive(s)
    • Space-efficient 2U form factor

    MAXIMIZE SYSTEM PERFORMANCE:
    Upgrade to a Solid State OS Drive

    License & Warranty

    One-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).


    System Requirements for Desktop Clients

    SAFARI Montage RM-86 Purchase Information
    95% E-Rate Eligible | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.

    Technical Specifications

    Manufacturer & Operating System
    safari montage logo
    CPU
    Hex-Core Intel Xeon
    CPU Cores
    6 (total)
    CPU Threads
    12 (total)
    CPU Speed
    2.0-2.5 GHz
    Cache
    15 MB
    Memory
    16 GB
    Drive Bays
    8
    Drives Included2
    SATA 7.2K OS Drive
    SATA 7.2K Content Drive(s)
    Network
    (2) 100/1000 Mbps ports
    Chassis
    2U Rack-Mount
    Power
    500W PSU (single)
    115 V AC/7.4A
    230 V AC/3.7A
    Dimensions
    Height: 8.89 cm (3.50")
    Width: 44.45 cm (17.50")
    Depth: 71.12 cm (28.00")
    Weight
    21.77 kg (48 lbs)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

    1In comparison to prior generation.
    2 High endurance, enterprise, solid state OS drives available as an upgrade (requires additional purchase).


  • RM126X server

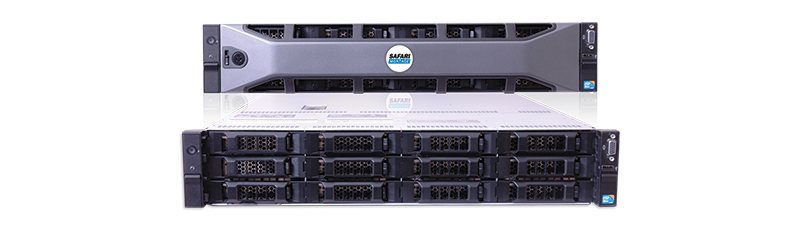

    RM-128X
    Enterprise Class Server

    Maximum Performance & Capacity - The Perfect Solution for Wide Area Network Delivery Needs


    The SAFARI Montage® RM-128X server offers maximum system performance with an ultra-fast 8-Core Intel® Xeon® processor, massive expandability with 12 hot-swappable hard drive bays, redundant network connectivity and a hot-swappable power supply.

    Completely scalable and manufactured by Dell®, this server has been custom-configured and optimized for high-quality video playback on the SAFARI Montage® platform. With 12 hard drive bays, the RM-128X provides storage capacity to store thousands of hours of created content and more than adequate expansion capacity to meet future growth needs.

    All servers come pre-loaded with the SAFARI Montage® OS1 and the appropriate number of Core Content hard drives to match your order. With each installation, SAFARI Montage carefully evaluates district needs and bandwidth to develop a customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming LIbrary, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Key Features:

    • 8-Core Intel Xeon CPU for 33% More Processing Power2
    • Fully redundant network connectivity and hot-swappable Power Supplies
    • Maximum capacity and expandability with 12 hot-swappable drive bays
    • Space-efficient 2U form factor

    MAXIMIZE SYSTEM PERFORMANCE:
    Upgrade to a Solid State OS Drive

    License & Warranty

    Three-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).


    Technical Specifications

    Manufacturer
    dell logo
    Operating System
    SM logo
    CPU
    (1) 8-Core Intel Xeon
    CPU Cores
    8 (total)
    CPU Threads
    16 (total)
    CPU Speed
    2.4-3.2 GHz
    Cache
    20 MB
    Memory
    16 GB
    Drive Bays
    12
    Drives Included
    (1) SAS 15K OS Drive(s)
    Network Ports
    4
    Network
    100/1000 Mbps
    Chassis
    2U Rack-Mount
    Power
    Single Hot-Swappable 750W
    Power Supply: 120 VAC/10A, 220 VAC/5A
    Dimensions
    Height: 8.89 cm (3.50")
    Width: 44.45 cm (17.50")
    Depth: 71.12 cm (28.00")
    Weight
    23.13 kg (51 lb)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

    1 SYSTEM REQUIREMENTS Operating System for Client Desktops: Mac: OS® C v10.6-10.10, PC: Microsoft Windows XP Service Pack 3, Windows Vista, Windows 7, Windows 8.1.
    2 In comparison to prior generation.


    System Requirements for Desktop Clients

    Dell and the Dell logo are trademarks of Dell Inc. Intel and Xeon are registered trademarks of Intel Corporation.

    SAFARI Montage RM-128X Purchase Information
    95% E-Rate Eligible (Note: If using the server to support a WAN, the server is 91% eligible) | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.

  • WAN1212 Server

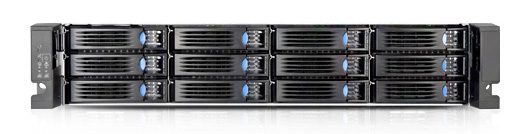

    WAN-1212
    Enterprise Class Server

    Maximum performance & capacity - The perfect solution for Wide Area Network delivery needs


    The SAFARI Montage® WAN-1212 is a true enterprise-class server, offering maximum system performance with dual, ultra-fast Hex-Core Intel® Xeon® processors, massive expandability with 12 hot-swappable hard drive bays and full redundancy with dual, hot-swappable power supplies, redundant network connectivity and dual, mirrored OS drives.

    Completely scalable and manufactured by SAFARI Montage, this powerhouse server is perfectly suited as the backbone of a district's digital media management solution. With 12 hard drive bays, the WAN-1212 offers the largest storage capacity of our server offerings to store thousands of hours of district-created content and ensure the capacity to meet growing storage needs.

    All servers come pre-loaded with the SAFARI Montage® OS and the appropriate number of Core Content hard drives to match your order. With each installation, SAFARI Montage carefully evaluates district needs and bandwidth to develop a customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming LIbrary, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Intel and Xeon are registered trademarks of Intel Corporation.

    Key Features:

    • Dual Hex-Core Intel Xeon CPUs for 50% More Processing Power1
    • Fully redundant with dual OS drives and hot-swappable power supplies
    • Maximum capacity and expandability with 12 hot-swappable drive bays
    • Space-efficient 2U form factor

    MAXIMIZE SYSTEM PERFORMANCE:
    Upgrade to Solid State OS Drives

    License & Warranty

    One-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).

    Technical Specifications

    Manufacturer & Operating System
    Safari Montage Logo
    CPU
    (2) Hex-Core Intel Xeon
    CPU Cores
    12 (total)
    CPU Threads
    24 (total)
    CPU Speed
    2.0-2.5 GHz
    Cache
    2 x 15 MB
    Memory
    24 GB
    Drive Bays
    12
    Drives Included2
    SATA 7.2K OS Drive(s)
    SATA 7.2K Content Drive(s)
    Network Ports
    2
    Network
    100/1000 Mbps
    Chassis
    2U Rack-Mount
    Power
    Dual Hot-Swappable 620W
    Power Supplies: 115 VAC/8A
    230 VAC/4A
    Dimensions
    Height: 8.89 cm (3.50")
    Width: 44.45 cm (17.50")
    Depth: 64.77 cm (27.50")
    Weight
    26.30 kg (58 lb)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

    1 In comparison to prior generation.



    System Requirements for Desktop Clients

    SAFARI Montage WAN-1212 Purchase Information
    91% E-Rate Eligible | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.

  • WAN1216X server

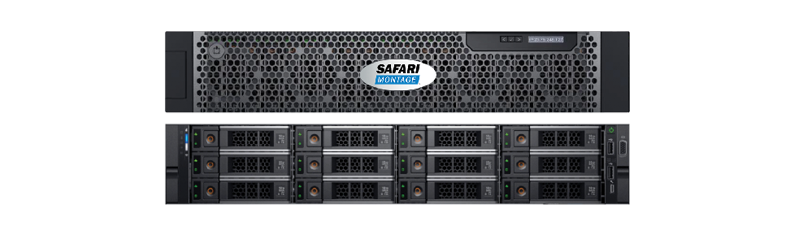

    WAN-1216X
    Enterprise Class Server

    Maximum performance & capacity - The perfect solution for Wide Area Network delivery needs


    The SAFARI Montage® WAN-1216X is a true enterprise-class server, offering maximum system performance with dual, Enterprise-Class, 8-Core Intel® Xeon® processors, capable of of 3.2 GHz using Intel Turbo Boost Technology. Manufactured by Dell®, this powerhouse server is perfectly suited as the backbone of a district's digital media management solution. With dual 8-Core CPUs and 32 GB of RAM, the WAN-1216X offers the highest performance of our serves to manage and deliver thousands of hours of district-created content and ensure capacity to meet future district needs.

    The WAN-1216X comes pre-loaded; with the SAFARI Montage® OS1 on high performance, enterprise-class 15K mirrored SAS (standard) or SSD (recommended upgrade)3 drives. With each installation, SAFARI Montage® carefully evaluates district needs and bandwidth to develop a customized system recommendation tailored specifically for that district.

    Supports the following SAFARI Montage solutions:

    Video Streaming Library, Learning Object Repository, Digital Lesson Tools, IPTV, Network-DVR, SAFARI Montage SupeTube and SAFARI Montage Live-5!

    Dell and the Dell logo are trademarks of Dell Inc. Intel and Xeon are registered trademarks of Intel Corporation.

    Key Features:

    • Dual 8-Core Intel Xeon CPUs for 33% More Processing Power2
    • Fully redundant with dual OS drives and hot-swappable power supplies
    • Maximum capacity and expandability with 12 hot-swappable drive bays
    • Space-efficient 2U form factor

    MAXIMIZE SYSTEM PERFORMANCE:
    Upgrade to Solid State OS Drives

    License & Warranty

    Three-year limited warranty. Purchase of a SAFARI Montage server is subject to warranty terms and conditions. The software that accompanies the server is licensed and protected by copyright. Extended Hardware Warranty coverage can be purchased. The Extended Warranty includes the repair and/or replacement of defective server(s) and/or hard drives(s).

    Technical Specifications

    Manufacturer
    dell logo
    Operating System
    Safari Montage Logo
    CPU
    (2) 8-Core Intel Xeon
    CPU Cores
    16 (total)
    CPU Threads
    32 (total)
    CPU Speed
    2.4-3.2 GHz
    Cache
    2 x 20 MB
    Memory
    32 GB
    Drive Bays
    12
    Drives Included
    (2) SAS 15K OS Drive(s)
    Network Ports
    4
    Network
    100/1000 Mbps
    Chassis
    2U Rack-Mount
    Power
    Dual Hot-Swappable 750W
    Power Supplies: 120 VAC/10A
    220 VAC/5A
    Dimensions
    Height: 8.89 cm (3.50")
    Width: 44.45 cm (17.50")
    Depth: 71.12 cm (28.00")
    Weight
    23.13 kg (51 lbs)
    Environmental
    Operating: 10° to 35°C (50° to 95°F)
    Storage: -40° to 70°C (-40° to 158°F)

    1SYSTEM REQUIREMENTS Operating System for Client Desktops: Mac: OS X v.10.6-10.10, PC: Microsoft Windows XP Service Pack 3, Windows Vista, Windows 7, Windows 8.1.
    2In comparison to prior generation.
    3Available at additional cost.



    SAFARI Montage WAN-1216X Purchase Information
    91% E-Rate Eligible | For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.
