HLS Unicast Encoder

HLS Unicast Encoder

SAFARI Montage HLS Unicast Encoders provide full, native HTML5-compatible playback to meet the needs of any client — all without the need for the SAFARI Montage Media Player plugin1.

These next generation encoders integrate seamlessly with SAFARI Montage IPTV & Live Media Streaming solutions to support live stream delivery to mobile devices, Chromebooks, and the latest Chrome, Microsoft Edge and Firefox browsers, which no longer support plug-ins and require HTML5 support.

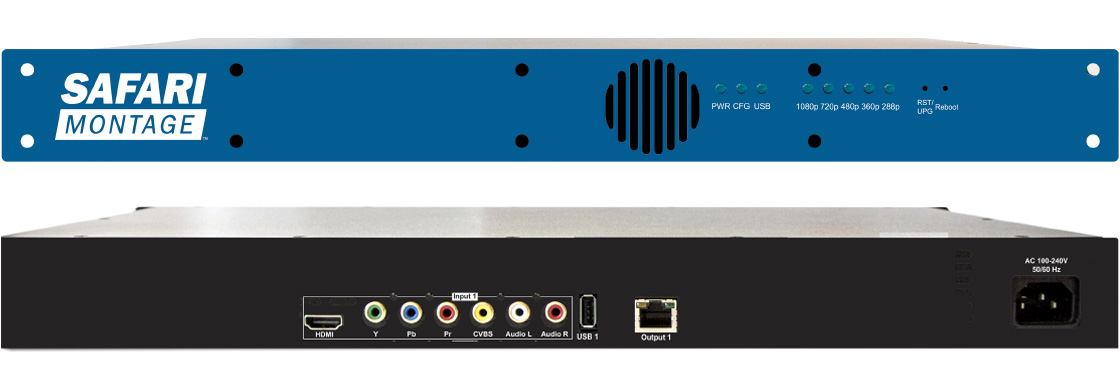

SAFARI Montage HLS Unicast Encoders support flexible video input options with HDMI, component and composite inputs — and outputs HTML5-native HLS unicast streams, dynamically serving the optimal stream and bitrate to each client.

SAFARI Montage HLS Unicast Encoders are ideal for streaming school news and support up to 60 clients directly. When paired with multicast encoders, SAFARI Montage IPTV & Live Media Streaming solutions will dynamically select the optimal streaming format through client auto-detection, delivering multicast or ABR unicast (HLS) at three different bitrates.

Key Features

  • HLS Adaptive Bitrate (ABR) output
  • Flexible configuration of ABR resolutions from 288p to 1080p2
  • Accepts HDMI, Component, Composite inputs
  • HDCP Compliant with compatible devices
  • Low power consumption

1Note: Adobe Flash support may be required on supported legacy operating systems and browsers such as Windows 7 with Internet Explorer 11
2ABR output in three selectable resolutions up to a maximum of the input resolution

Specifications

REQUIREMENT
 SAFARI Montage 7.3
MANAGEMENT
 Configuration/Remote status monitoring via on-board web server
POWER
 120V/240V
SOFTWARE UPDATES
 Remotely upgradeable via web interface
VIDEO ENCODING
 H.264; HTTP Unicast, HLS ABR with 3 selectable streams from the following resolutions: 288p/ 360p/ 480p/ 720p/1080p2
AUDIO ENCODING
 MPEG-4 ACC
VIDEO INPUTS
 16:9 Aspect Ratio HDMI, Component, Composite
AUDIO INPUTS
 HDMI, digital stereo audio
Dual RCA, analog stereo audio
NETWORK
 10/100/1000 Base-T Ethernet
DIMENSIONS
 1U Rack-mount
17.44" (W) x 9.5" (D) x 1.81" (H)
WARRANTY
 3 years
INCLUDED WITH EACH
ENCODER
 6' RJ45 Cat-5e patch cable
6' YPbPr component video cable
6' dual RCA audio cable
6' HDMI cable
