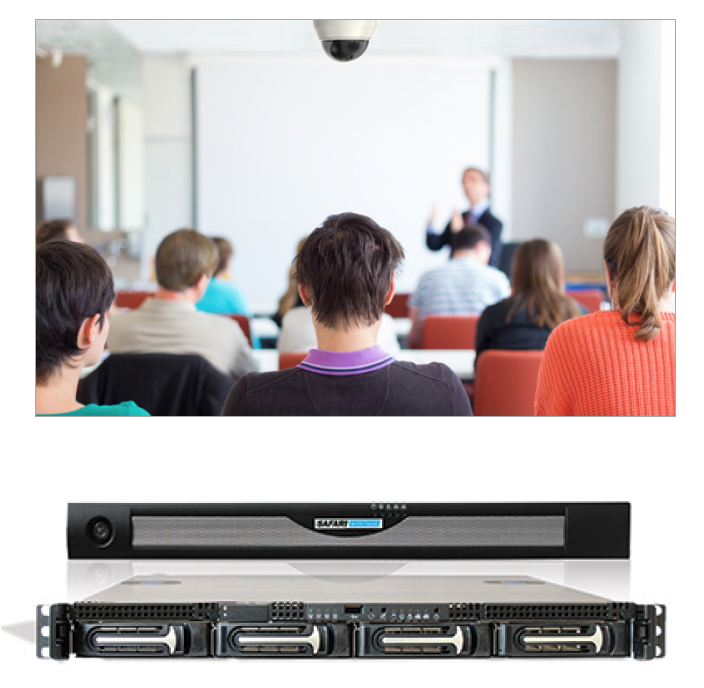

SAFARI Montage® Network-DVR Server (N-DVR)

Record digital TV programs, school news, classroom lessons, teaching best practices, school board meetings and more.

The SAFARI Montage N-DVR provides districts with the ability to schedule, record and store multiple video sources, including live streams and cable TV programming. The N-DVR interfaces seamlessly with other modules in the SAFARI Montage® suite, including the SAFARI Montage Learning Object Repository, Selective Video Streaming and Pathways SM™, to provide an easy and convenient method of capturing streamed video for future viewing.

N-DVR System Requirements

  • SAFARI Montage® v.5.4 (or later)
  • N-DVR Server
  • SAFARI Montage CreationStation®
  • Selective Video Streaming
  • Pathways SM



N-DVR Server Specifications

4-Stream Server

8-Stream Server

NEW! 18-Stream Server
Concurrent Recording Streams
 4 8 18
CPU Speed
 3.6-4.0 GHx 2.2-3.1 GHx 2.2-3.1 GHx
CPU
 Quad-Core Intel Xeon® 10-Core Intel Xeon® two 10-Core Intel Xeon®
Memory
 8 GB RAM 16 GB RAM 32 GB RAM
Chasis
 1U Rack-Mount 1U Rack-Mount 1U Rack-Mount
CPU Threads (total)
 8 20 40
Cache
 8 MB 25 MB (2)x25 MB
Drive Bays
 5 4 4
Drives Included
 SATA 7.2K OS Drives
SSD N-DVR Recording Drive		 SATA 7.2K OS Drives
(2) SSD N-DVR Recording Drive		 SATA 7.2K OS Drives
(3) SSD N-DVR Recording Drive
Network
 (2) 1 Gbps (2) 1 Gbps (2) 1 Gbps
Dimensions
 Height: 4.45 cm (1.75")
Width: 48.3 cm (19")
Depth: 66.0 cm (26")		 Height: 4.45 cm (1.75")
Width: 48.3 cm (19")
Depth: 66.0 cm (26")		 Height: 4.45 cm (1.75")
Width: 48.3 cm (19")
Depth: 66.0 cm (26")
