SAFARI Montage® Endpoint

SAFARI Montage Endpoint

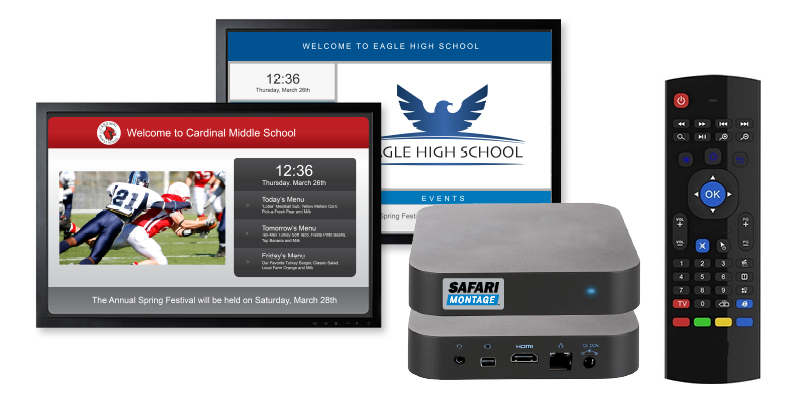

The SAFARI Montage Endpoint is a high-performance solution capable of decoding live and on-demand video streams delivered via an IP network for High Definition (HD) display. It allows teachers to show rich live or recorded video resources to the classroom while continuing to use their workstation for other applications-without the need to connect the workstation to a projector or audio system. This cost-effective digital media endpoint supports playback of SAFARI Montage licensed and district-created content, along with live streams such as school news, digital TV and live cameras. It integrates with Pathways SM and also an ideal solution for schools that want to continuously run school news and events in common areas via Digital Signage.

Supports the following SAFARI Montage solutions:

IPTV, Learning Object Repository, Digital Signage

Supports IPTV & Live Media Streaming with:

  • PC and Laptop Input Switching: Use Pathways SM virtual remote control to switch inputs on IP-controllable projectors
  • Easily manage the digital classroom environment with a SAFARI Montage Endpoint and Classroom Display License

Supports Digital Signage with:

  • Basic Digital Signage Templates: 4 Pre-packaged digital signage themes (Sporting Events, Lunch Menu, School News, Recorded Media)
  • Customizable Options: Additional Rich Text Fonts, Sizes, Colors and Backgrounds
  • Ability to Schedule Playlists: Schedule Looping Playlists of Recorded or Live Content
  • Excludes Premium Digital Signage features (Coming Soon!)

Technical Specifications

CPU
Broadcom BCM7230 SoC
Memory
512 MB RAM, 512 MB Flash
Video Formats
MPEG4/H.264, WMV
Audio Formats
AAC, M4A, MP3, WAV, WMA
Network
10/100 BaseT via RJ45 Ethernet Port
Outputs
HDMI v. 1.4a up to 1080p30, S/PDIF optical
Power
AC-DC Adaptor
AC input: 100-240 V
DC output: 5V/2.5A
Dimensions
Height: 35 mm
Width: 170 mm
Depth: 150 mm
Weight
.69 kg (1.5 lb)
Environmental
Temp: 0° to 35°C (32° to 95°F)
Humidity: 10% - 70%
Components

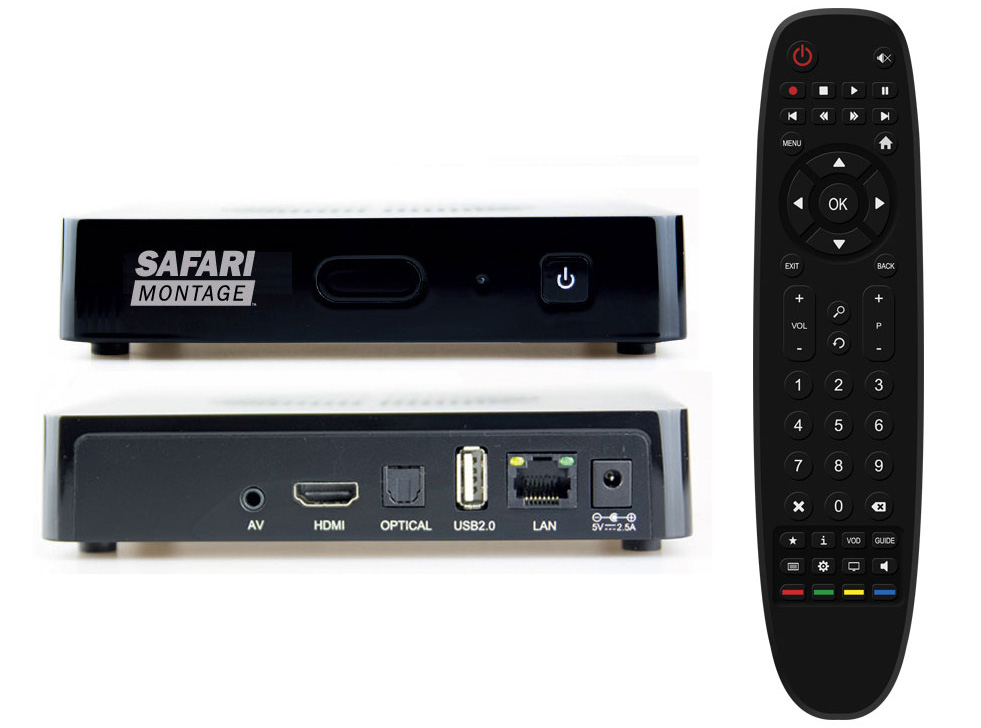

SAFARI Montage Endpoint
IR Remote control
Power Supply
Network cable
HDMI cable
System Requirements
SAFARI Montage v.6.4
Pathways SM
SAFARI Montage LOR or IPTV®
SAFARI Montage® Selective Video Streaming recommended
Global Cache (for non-IP Device Control)

Basic Digital Signage Templates

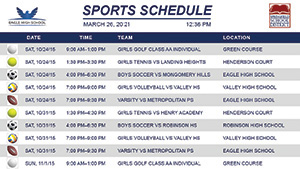

sports template

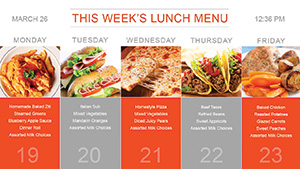

menu template

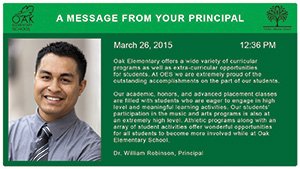

principal template


For pricing and more information, call 800-843-4549 or email cs@safarimontage.com.
